Concealed
The concealed solution can be delivered with four heating capacities, 9.1 kw, 11.2 kw, 12.7 kW and 15.5 kW.
|
|
The indoor unit is hidden away in a loft space / attic and the only visible parts are ventilation grilles. Air distribution is through hidden ducts.

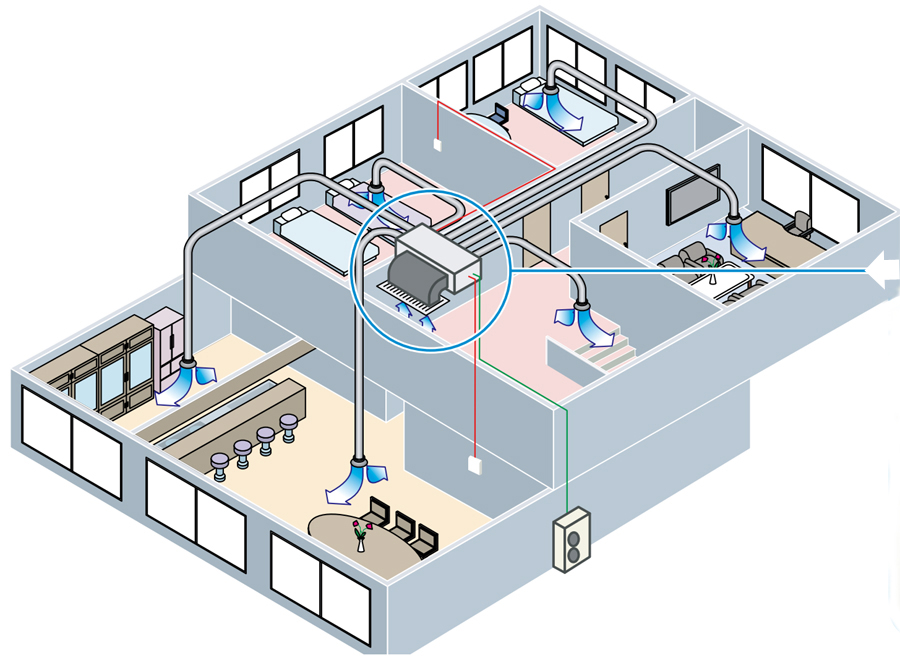

Indoor unit here.
Air is distributed from the indoor unit to the different spaces /
rooms that need heating. Dampers may be fitted to regulate
air flow/temperature.
The return air to the indoor unit is either collected through vents in each room or directly
under the indoor unit.
Each vent is only 200 * 200 mm or 150 * 150 mm.
|
We recommend this solution for;
- Buildings where the visual impact of the indoor unit would not be acceptable
- Buildings where more than one room needs to be heated with one unit
- Village halls with a separate kitchen and a smaller room
- Bungalows
Options depending on the model installed:
- High capacity heat output - up to 31.5 kW. Requires 3 phase electrical supply.
- Touch screen wired remote
- Smart phone / tablet control
- Group control - use one wired controller for more than one unit
- Outdoor unit protective case
|
Please see our downloads page for dimensions. Please see our remote page for the control options
Mouse over to get a larger image and a description.

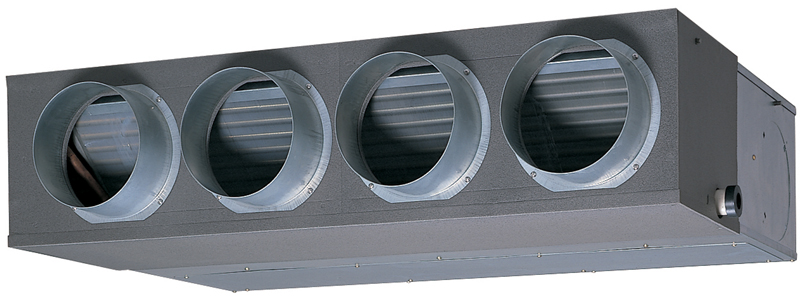

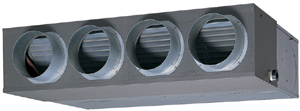

Indoor unit

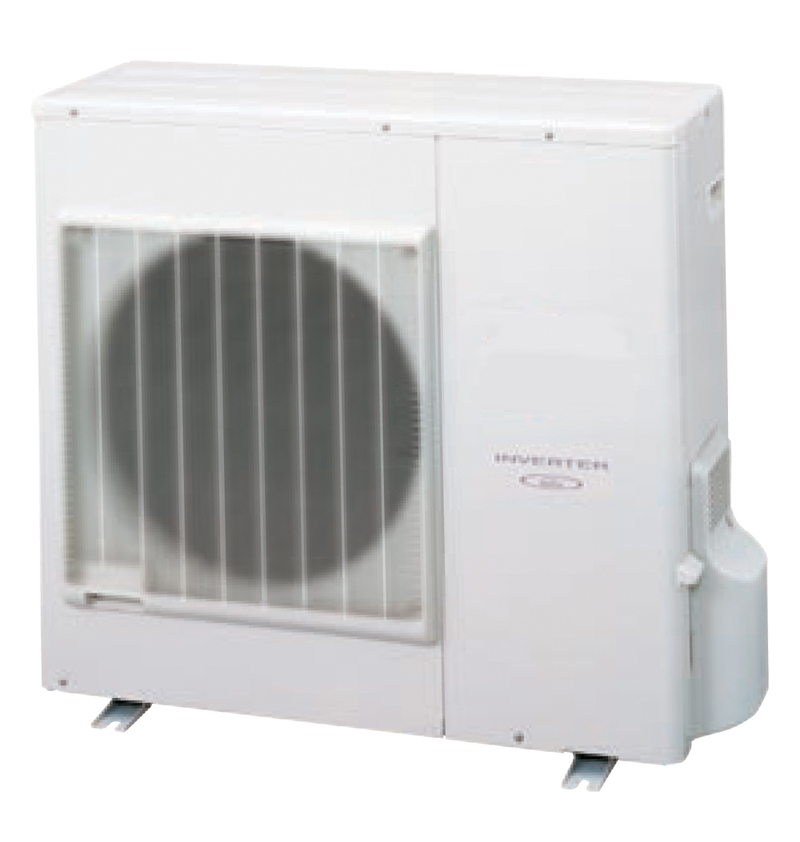

Outdoor unit - for 9.1, 11.2 and 12.7 kW

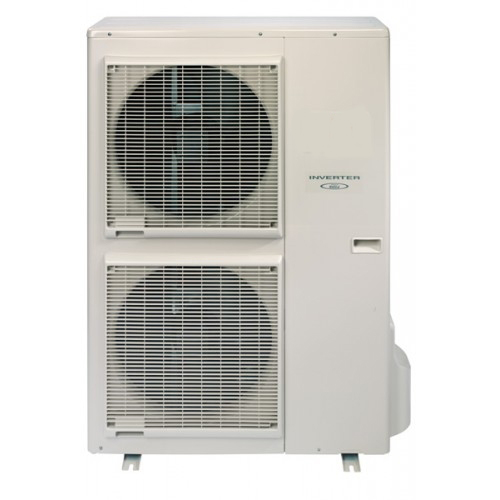

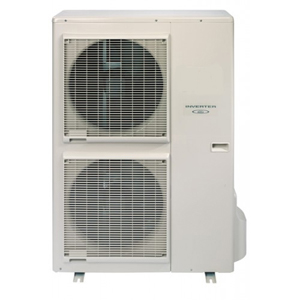

Large outdoor unit - for 15.5 kW
|
|
|
